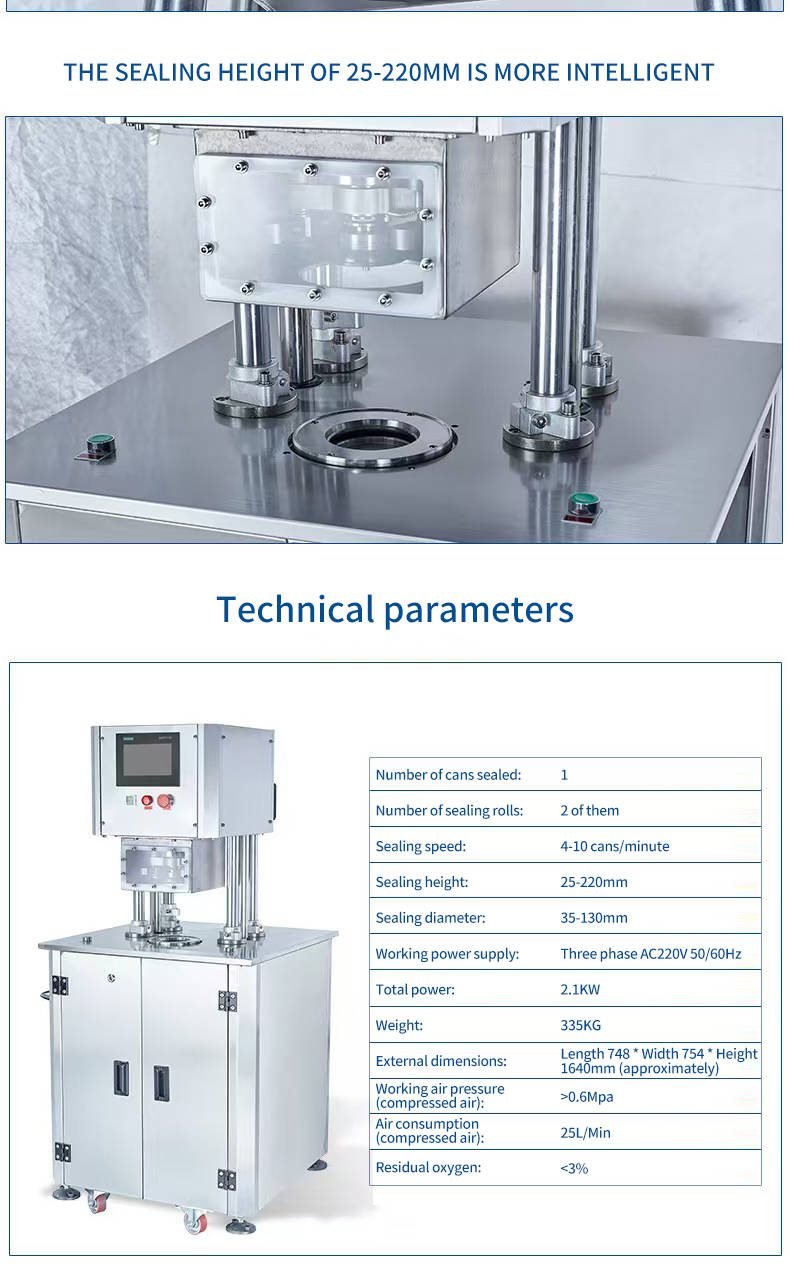

Technical Parameter
1. Number of sealing head : 1
2. Number of seaming roller: 2 (1 first operation, 1 second operation)
3. Sealed barrel: 1 PC
4. Vacuum chamber:1 PC
5. Sealing speed: 3-4 cans / min (related to the can size)
6. Sealing height: 35-220mm

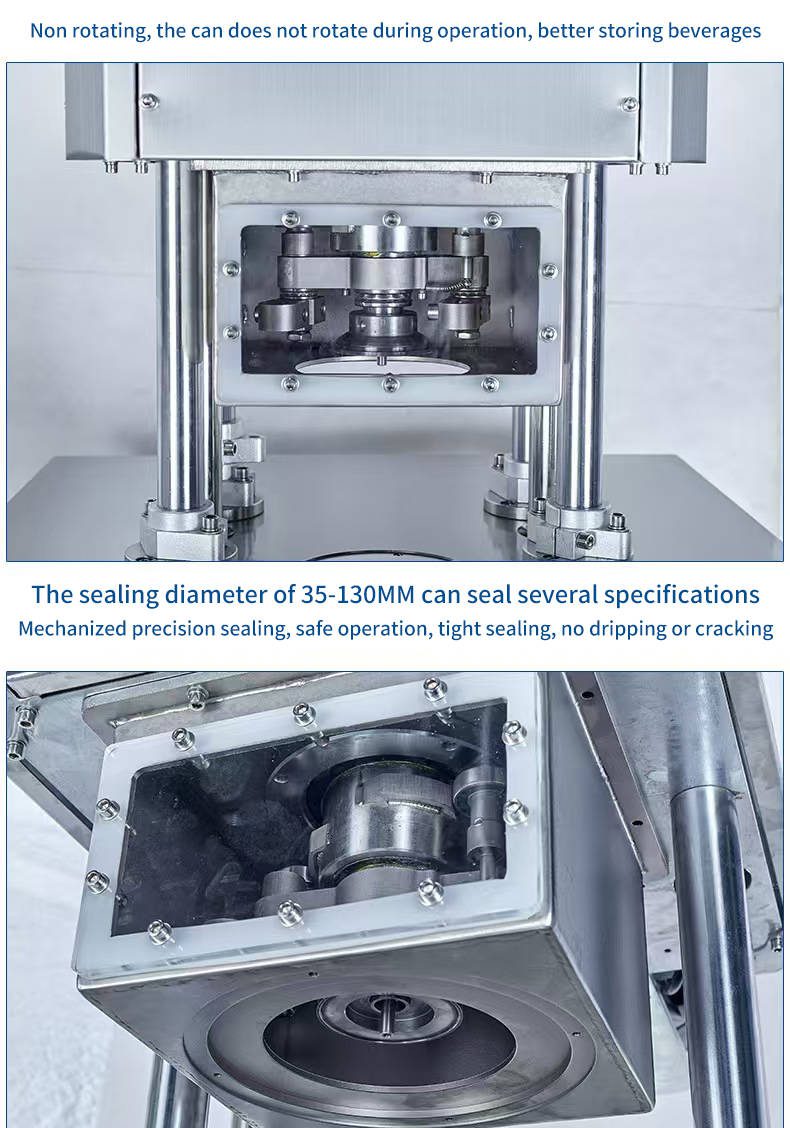

7. Sealing diameter: 35-126mm
8. Working temperature: 0 ~ 45 ° C, working humidity: 35 ~ 85%
9. Working power supply: single phase AC220V 50/60Hz
10. Total power: 2KW
11. Weight: 200KG (about)
12. Dimensions:L 780 * W 980 * H 1450mm
13. Working pressure (compressed air) ≥0.6MPa
14. Air consumption (compressed air): about 60L/min
15. Nitrogen source pressure ≥0.2MPa
16. Nitrogen consumption: about 50L/min
17. Minimum vacuum pressure -0.07MPa
18. Residual oxygen content <3%
Working principle

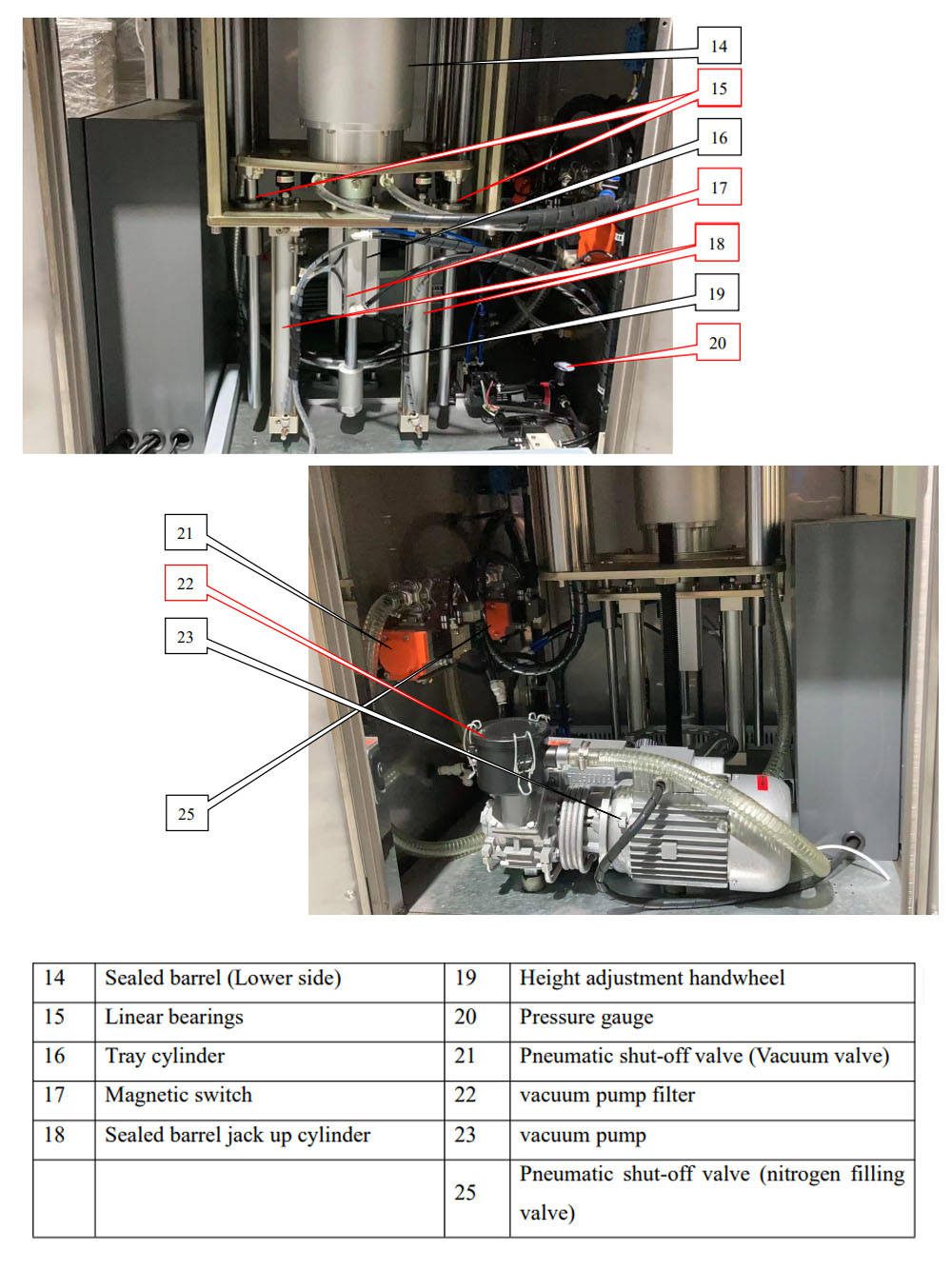

Put the can on the sealing barrel tray, jack up the sealing barrel and press the vacuum chamber through the
cylinder at the bottom, open the vacuum valve, and pump out the air in the vacuum chamber and the sealing
barrel, then open the nitrogen valve, fill with nitrogen. When the nitrogen concentration reaches the set value, the tray cylinder at the bottom starts working to

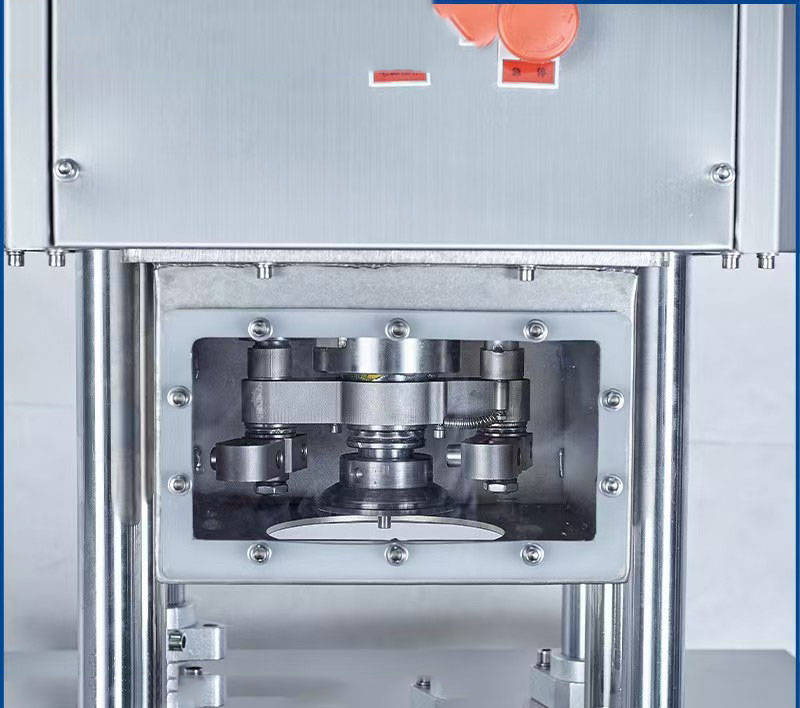

make the can and lid work with the seaming chuck and drive the sealing head to rotate through the turbo
reducer and the synchronous belt. At the same time, the first and second sealing rollers cooperate with the seaming chuck to complete the
sealing process of a can. Then the tray and the sealing barrel are lowered with the can to complete a sealing
process of vacuuming and nitrogen filling.
